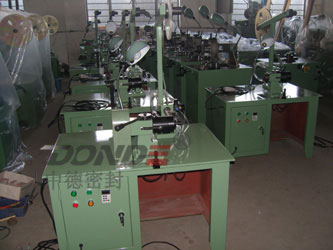

Small Winder for SWG
Item No:ZD-M200
Description:It
is a desktop winding machine, which can produce spiral wound
gasket with inner ring or without inner ring. Driven by
variable frequency gear motor, with special tool to take off
molds of gaskets without inner ring easily, no need to
uninstall molds.
Options: 1. V or W profile, thk 3.2mm
4.5mm 6.4mm 7.2mm
2. Molds of customized size are available on request.
Technical Parameter:
|
Gasket Size
|
1/2”-6” with inner ring / without inner ring
|
|
Nominal Thickness
|
4.5mm
|
|
Maximum Outer Diameter
|
200mm
|
|
Minimum Inner Diameter
|
15mm
|
|
Repeatability of Outer Diameter
|
±0.5mm
|
|
Rotational Speed
|
0 – 240 rpm
|
|
Total Power
|
2.2 KW
|
|
Motor Power
|
0.75 KW
|
|
Voltage
|
380V/220V
|
|
Air Pressure
|
6-8 BAR
|
|
Variable Frequency Controller
|
2.2G
|
|
Dimension
|
1200*850*1650mm
|
|
Weight
|
280 KG
|
